Happy Japan EXP-9300

Happy Japan strengthened the EXP-9300’s internal components to work through thick materials more efficiently. It also includes an improved control program that adjusts machine performance more accurately during heavy-duty sewing tasks.

This design matters when your project has several layers, like hems, seams, quilt layers, or bag parts. Thick materials can add resistance near the needle and feed area. So the machine needs solid mechanical support and steady power.

The EXP-9300 has a maximum sewing speed of 900 stitches per minute. You do not need to sew thick fabric at maximum speed. Slowing down at bulky seam crossings gives you more control and helps the needle move through layers with less strain.

Use the machine’s speed controls and needle up-down button when you approach uneven areas. This helps you place stitches accurately at seam allowances, hems, and corners.

The EXP-9300 uses Happy Box Feed, a system designed to keep fabric in contact with the feed dogs for longer during each stitch cycle. The feed dogs move horizontally, which supports more consistent fabric movement.

It improves fabric feeding for thick, thin, and stretchy materials, letting you switch types without changing feeding methods.

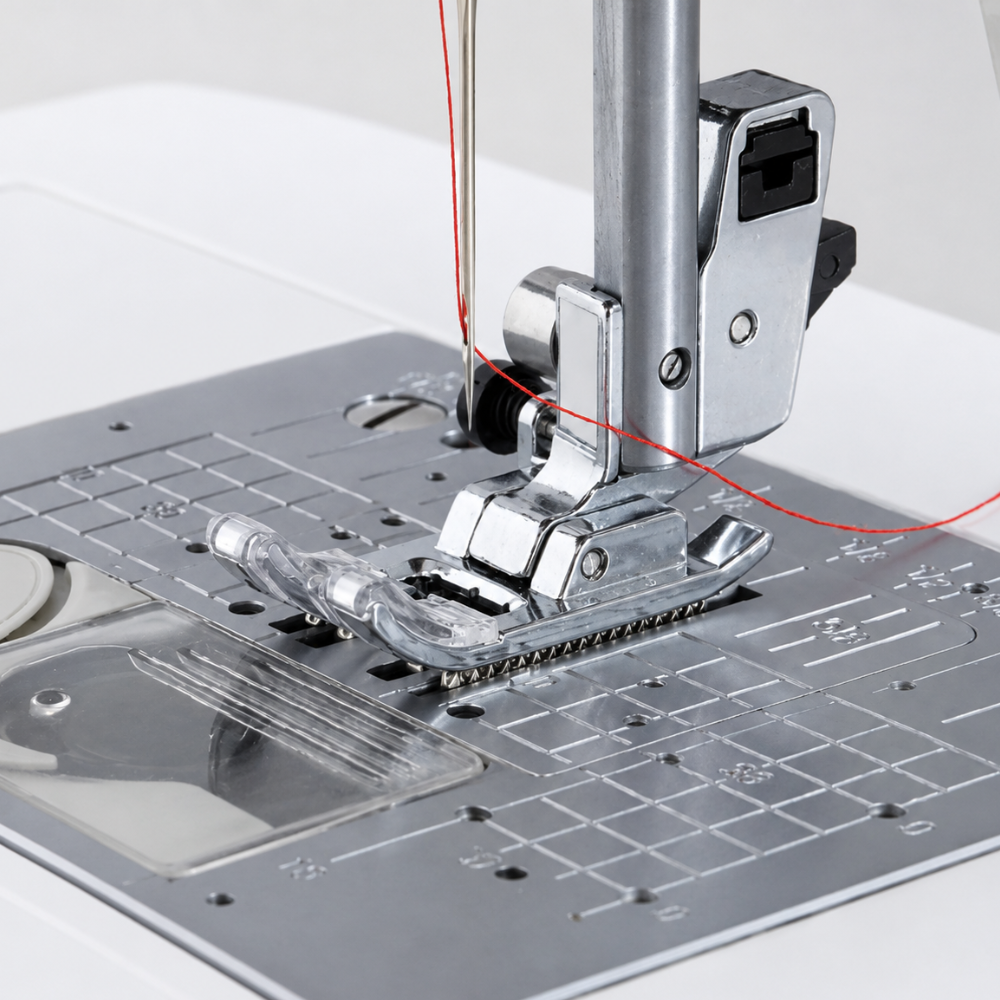

The machine uses seven-piece feed dogs. Their wider, multi-part contact helps reduce slipping and puckering while fabric moves under the presser foot.

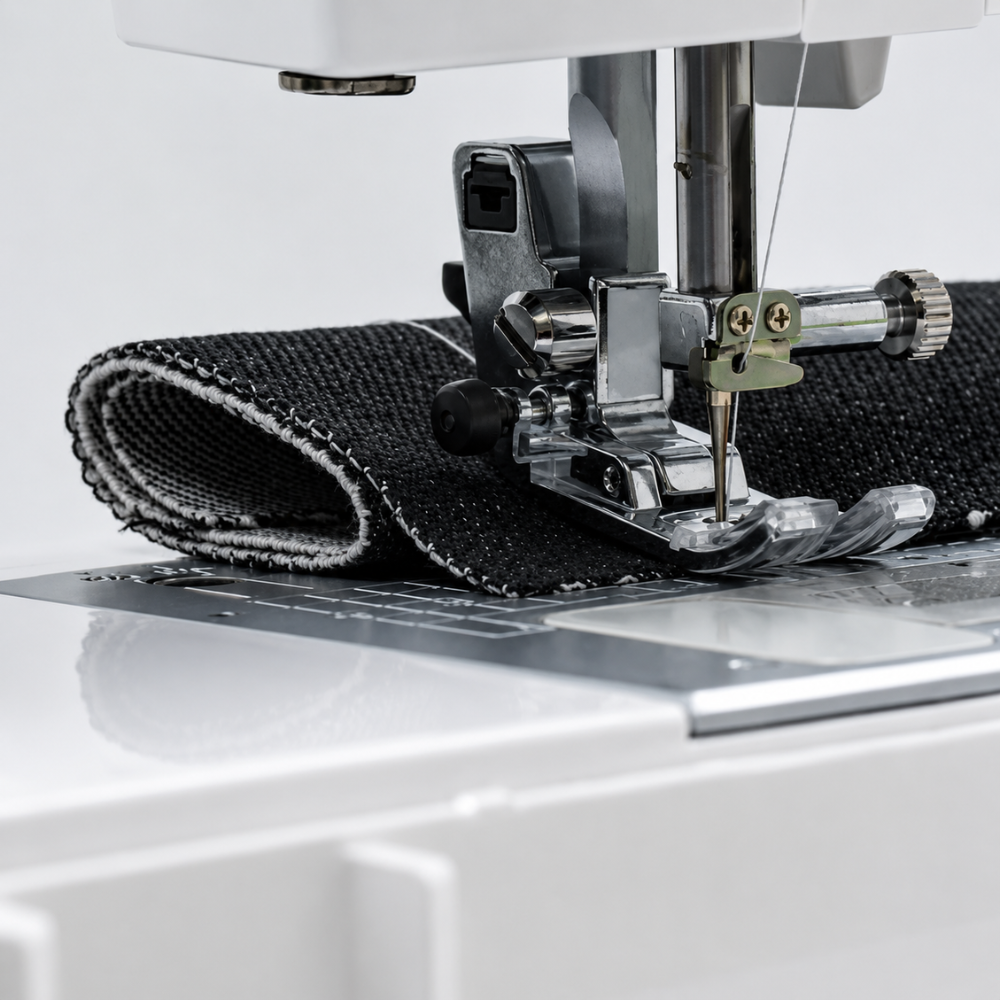

For thick layers, keep the fabric flat and guide it gently. Do not pull the project from behind the needle, because pulling can affect stitch length or bend the needle.

EXP-9300 presser-foot pressure has five levels to match fabric thickness. Use enough pressure for denim to feed evenly; too little shifts layers, too much hinders thick or uneven seams.

Presser-foot lock keeps the foot level over thick seams like denim hems. Use a denim needle and test thread, stitch length, and pressure on scraps to ensure even feeding.

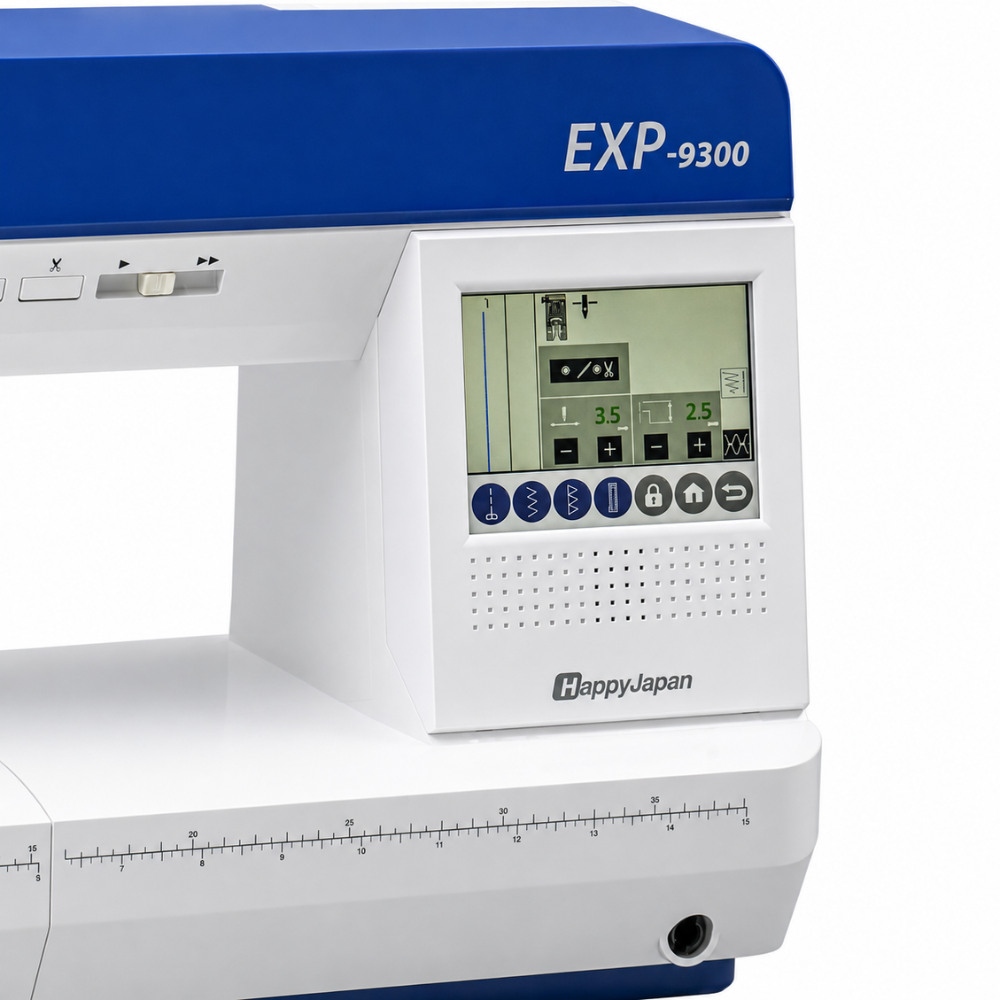

The EXP-9300 has an LCD colour touch screen for selecting stitch patterns and using machine settings. The screen makes it easier to choose the machine’s built-in utility stitches. It also helps you pick decorative stitches and lettering stitches. Using dials alone is less clear.

You can use the machine’s speed controls to match the task. The one-touch slow button lowers sewing speed fast when you reach a corner, sew thick seams, or need control near a buttonhole.

For heavy fabrics, the EXP-9300 reaches up to 900 stitches per minute. You do not need to sew at full speed. Use the foot controller for smooth control. Or use the start/stop button for hands-free sewing.

The lock button helps prevent accidental operation while you change the needle or presser foot. Activate it before you place your hands near the needle. Then unlock the computerised sewing machine after setup is complete.

The thread sensor adds another layer of protection during sewing. It can stop the machine if the upper thread breaks or if the machine detects incorrect threading.

The EXP-9300 uses a notification lamp to show when it is ready to sew. When the light changes from red to green, you can begin sewing with the start/stop button.

The signal prevents premature button presses while the machine prepares, aiding users learning controls or changing settings.

LED lighting illuminates the work area around the needle. You can see the fabric edge, stitch line, and needle position more easily when working with dark thread or dark fabric.

The light improves visibility but does not remove the need to check your seam line often. Keep your fingers clear of the needle path, and stop the machine before adjusting fabric near the presser foot.
